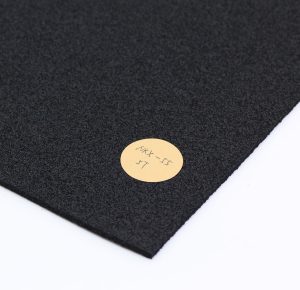

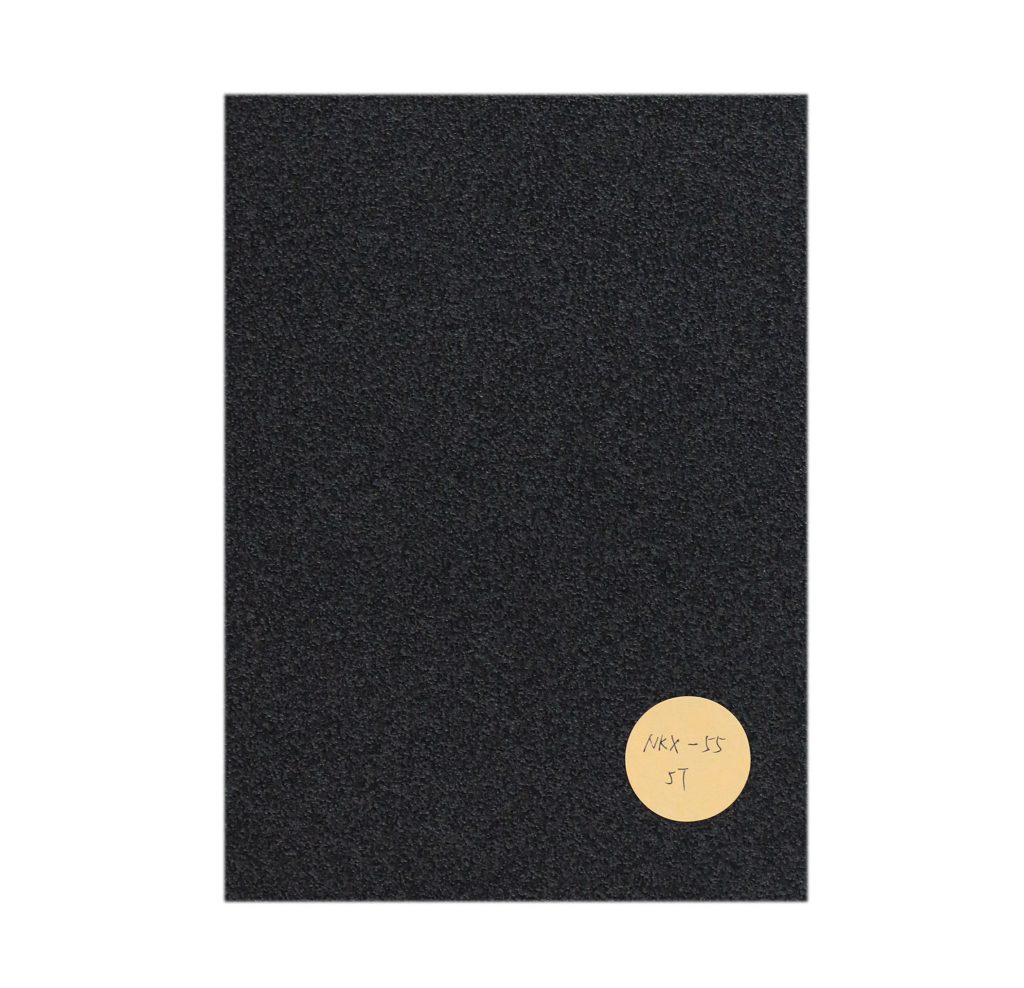

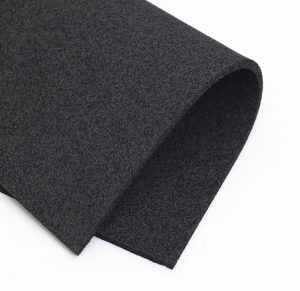

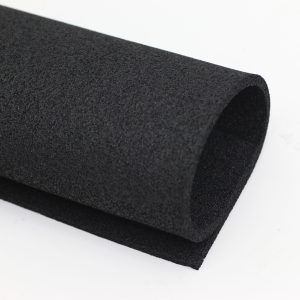

NKX-55 NBR FOAM
  1. Home
  2. /
  3. Products
  4. /
  5. Foam Rubber
  6. /
  7. Open Cell
  8. /
  9. NKX-55 NBR FOAM

NKX-55 NBR FOAM

Use for: Adhesive Tape, Gasket;  Material: NBR+PVC;  Cell State: Open Cell;  Test Standard: JIS, ASTM.

Categories:Open Cell
REQUEST A QUOTE
DOWNLOAD SPECS

NKX-55 can provide the similar performance with EPDM material. But it is more economical and practical than EPDM foam series.

As compressive load (stress) is small, it will not deform the structure after filling in joints. Easy to compress and apply.

Low specific gravity of 0.065; Application and preservation easy as foam pieces do not fuse together.

Please refer to the download center for getting the specific physical performance data for this product item.

01

02

03

DOWNLOAD DA SERIES DATA SHEET (PDF)
01
02
GET A COMPETITIVE QUOTE

IDEAL BERTHING solution

Test

READ ARTICLE
Test
READ ARTICLE

Custom Adhesive-Backed EPDM Foam Solutions

Simplifying Foam Installation Installing foam strips manually can be difficult when the material moves, twists or becomes misaligned during assembly. Adhesive-backed EPDM foam provides temporary or permanent positioning support, depending on the selected adhesive system. The adhesive layer allows the foam to be applied directly to prepared metal, plastic, glass or coated surfaces. Available Configurations […]

READ ARTICLE
Custom Adhesive-Backed EPDM Foam Solutions

Simplifying Foam Installation Installing foam strips manually can be difficult when the material moves, twists or becomes misaligned during assembly. Adhesive-backed EPDM foam provides temporary or permanent positioning support, depending on the selected adhesive system. The adhesive layer allows the foam to be applied directly to prepared metal, plastic, glass or coated surfaces. Available Configurations […]

READ ARTICLE

EPDM Foam Solutions for Construction and Glazing

Flexible Sealing for Building Components Construction joints, glazing systems, windows and doors require sealing materials that can accommodate dimensional tolerances and movement between components. EPDM foam rubber can provide flexible compression around frames, joints and contact surfaces while offering good outdoor weather resistance. Common Construction Applications EPDM foam is suitable for: Window and door frames […]

READ ARTICLE
EPDM Foam Solutions for Construction and Glazing

Flexible Sealing for Building Components Construction joints, glazing systems, windows and doors require sealing materials that can accommodate dimensional tolerances and movement between components. EPDM foam rubber can provide flexible compression around frames, joints and contact surfaces while offering good outdoor weather resistance. Common Construction Applications EPDM foam is suitable for: Window and door frames […]

READ ARTICLE
CONSULT WITH ENGINEER

PRODUCT

  1. Home
  2. /
  3. Products
  4. /
  5. Foam Rubber
  6. /
  7. Open Cell
  8. /
  9. NKX-55 NBR FOAM

NKX-55 NBR FOAM

Use for: Adhesive Tape, Gasket;  Material: NBR+PVC;  Cell State: Open Cell;  Test Standard: JIS, ASTM.

INQUIRE NOW

Product Details

Parameter Details
Product Name NKX-55 Open Cell NBR Foam
Applicable Industries Acoustic insulation, Domestic appliance, HVAC, Electronics, Automotive, Industrial seal
Use for Adhesive Tape, Gasket
Material NBR+PVC
Cell State Open Cell
Test Standard JIS, ASTM
Max Thickness 30 mm + With Skin
Material Advantage More economical and practical, it can also to fill cavities of various types of equipment, consisting of NBR+PVC synthetic rubber foam with an open cell structure. Higher compression foams are available for various purposes such as waterproof, windproof, dust-proof, soundproof, or thermal insulation according to the compression ratio.

specification

NKX-55 can provide the similar performance with EPDM material. But it is more economical and practical than EPDM foam series.

As compressive load (stress) is small, it will not deform the structure after filling in joints. Easy to compress and apply.

Low specific gravity of 0.065; Application and preservation easy as foam pieces do not fuse together.

Please refer to the download center for getting the specific physical performance data for this product item.

Main Applications

> OPEN CELL NBR FOAM

> Made of NBR/PVC foam, Open cell structure, they are often filled with cavity of household appliances

to play the role of sound absorption and noise reduction.

> NKX-55 is more economical and practical, it can also to fill cavities of various types of equipment,

consisting of NBR+PVC synthetic rubber foam with a open cell structure. Higher compression foams

are available for various purposes such as waterproof, windproof, dustproof, soundproof, or thermal

insulation according to the compression ratio.

NKX-55 NBR/PVC FOAM RUBBER

SPECIFICATION

Multipurpose open cell NBR/PVC Foam
Standard grade
Excellent sound-absorbing effect
Roll products can be provided (10,000mm)

Application specific details:
Water-proofing, air sealing, soundproofing and thermal insulation for air conditioners and air cleaners.
For mounting of cowl louvers.
For mounting of center pillars.
For mounting of mirrors.
For domestic appliance



SPECIAL POINT

The some difference from EPDM material:
Although NKX-55 is a NBR series material, but it can provide the similar performance with EPDM material. Like waterproof, windproof, dustproof, soundproof, or thermal insulation according to the compression ratio. However, its aging resistance is not as good as EPDM, and it is not easy to use in low temperature environment.

Basic physical performance:
Cell state: Open cell
Density：60±20 Kg/M³
Temperature range: -30℃ to 80℃
Maximum Size: 1000 x 10000 x 25 mm without skin. (Standard)
Tensile Strength : ≥ 100 KPA
Elongation: ≥ 100%
Compression Set: ≤ 15.0

NBR/PVC
