Flame-Retardant EPDM Foam. Use for: Adhesive Tape, GasketMaterial: EPDM. Cell State: Open Cell, Semi-closed Cell.
Test Standard: JIS, ASTM.
Containing chlorine-free flame retarder and it has obtained UL-94 and HF-1 certification.
Minimal stress facilitates compression; fits snugly to uneven surfaces thereby enabling airtight sealing and soundproofing.
Superior heat, weather, and ozone resistance enables the foam to withstand long-term use.
Please refer to the download center for getting the specific physical performance data for this product item.
Simplifying Foam Installation Installing foam strips manually can be difficult when the material moves, twists or becomes misaligned during assembly. Adhesive-backed EPDM foam provides temporary or permanent positioning support, depending on the selected adhesive system. The adhesive layer allows the foam to be applied directly to prepared metal, plastic, glass or coated surfaces. Available Configurations […]
Simplifying Foam Installation Installing foam strips manually can be difficult when the material moves, twists or becomes misaligned during assembly. Adhesive-backed EPDM foam provides temporary or permanent positioning support, depending on the selected adhesive system. The adhesive layer allows the foam to be applied directly to prepared metal, plastic, glass or coated surfaces. Available Configurations […]
Flexible Sealing for Building Components Construction joints, glazing systems, windows and doors require sealing materials that can accommodate dimensional tolerances and movement between components. EPDM foam rubber can provide flexible compression around frames, joints and contact surfaces while offering good outdoor weather resistance. Common Construction Applications EPDM foam is suitable for: Window and door frames […]
Flexible Sealing for Building Components Construction joints, glazing systems, windows and doors require sealing materials that can accommodate dimensional tolerances and movement between components. EPDM foam rubber can provide flexible compression around frames, joints and contact surfaces while offering good outdoor weather resistance. Common Construction Applications EPDM foam is suitable for: Window and door frames […]
Flame-Retardant EPDM Foam. Use for: Adhesive Tape, GasketMaterial: EPDM. Cell State: Open Cell, Semi-closed Cell.
Test Standard: JIS, ASTM.
| Parameter | Details |
|---|---|
| Product Name | EDK-10F Flame-Retardant Open Cell EPDM Foam |
| Applicable Industries | Automotive, Industrial seal, Domestic appliance, HVAC, Electronics, Acoustic insulation |
| Production Technology | Molded, Extrusion |
| Material | EPDM (HF-1) |
| Cell State | Open Cell |
| Use for | Adhesive Tape, Gasket |
| Test Standard | JIS, ASTM |
| Max Thickness | More than 90mm+ with skin by molding process |
Containing chlorine-free flame retarder and it has obtained UL-94 and HF-1 certification.
Minimal stress facilitates compression; fits snugly to uneven surfaces thereby enabling airtight sealing and soundproofing.
Superior heat, weather, and ozone resistance enables the foam to withstand long-term use.
Please refer to the download center for getting the specific physical performance data for this product item.
> OPEN CELL EPDM /SEMI CLOSED CELL
CASIS ATRIES EDK-10F foam which have obtained UL-94 HF-1 certification are composed of a
flexible foam sealing material consisting of EPDM rubber foam with a semi-closed cell structure
mixed with a flame retarder can be used for waterproofing, air-tightness, soundproofing, or thermal
insulation according to the compression ratio.
> Containing chlorine-free flame retarder, EDK-10F foam has obtained UL-94 and HF-1 certification,
the most stringent standard for flame retardancy of foam. Minimal stress facilitates compression; Fits
snugly to uneven surfaces thereby enabling airtight sealing and soundproofing. Superior heat, weather,
and ozone resistance enables the foam to withstand long-term use.
VERY SIMILAR TO NITTO EPTSEALER EC-100 SERIES

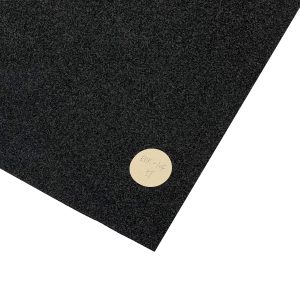

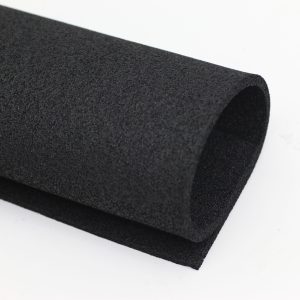

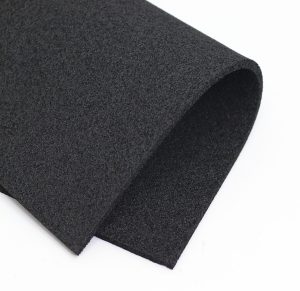

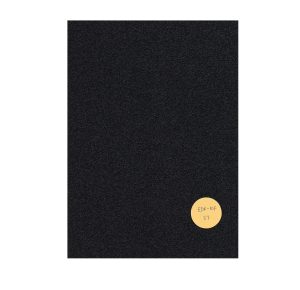

EDK-10F EPDM FOAM
SPECIFICATION
MULTI PURPOSE EPDM
Multipurpose open cell/Semi Closed Cell EPDM
Standard grade
Excellent Flame-retardant
Density：90±20 Kg/M³
Roll products can be provided (10,000mm)
Max thickness of block products up to more than 90mm with skin
Application specific details:
Especially designed for fireproofing, waterproofing, air sealing, soundproofing,Thermal insulation for electric/electronic equipment.
Automobile, electric motors / actuators.
Mobile phones, info processing equipment, household appliances.
Railway, Bus, Subway, Aeroplane, Aircraft, Communal facilities
The biggest difference from EDK-10:
EDK-10F can solve several issues from different flammable environment than EDK-10. It also has the same strong anti-aging performance as EDK-10. Containing chlorine-free flame retarder, EDK-10F foam has obtained UL-94 and HF-1 certification, the most stringent standard for flame retardancy of foam.
Basic physical performance:
Cell state: Open cell / Semi closed cell
Density：90±20 Kg/M³
Temperature range: -40℃ to 150℃
Comply with HF-1 flame retardant standard level
Maximum Size: 1000 x 10000 x 75mm+ without skin. (Standard)
Max thickness of block products up to more than 90mm+ with skin
Pure EPDM
