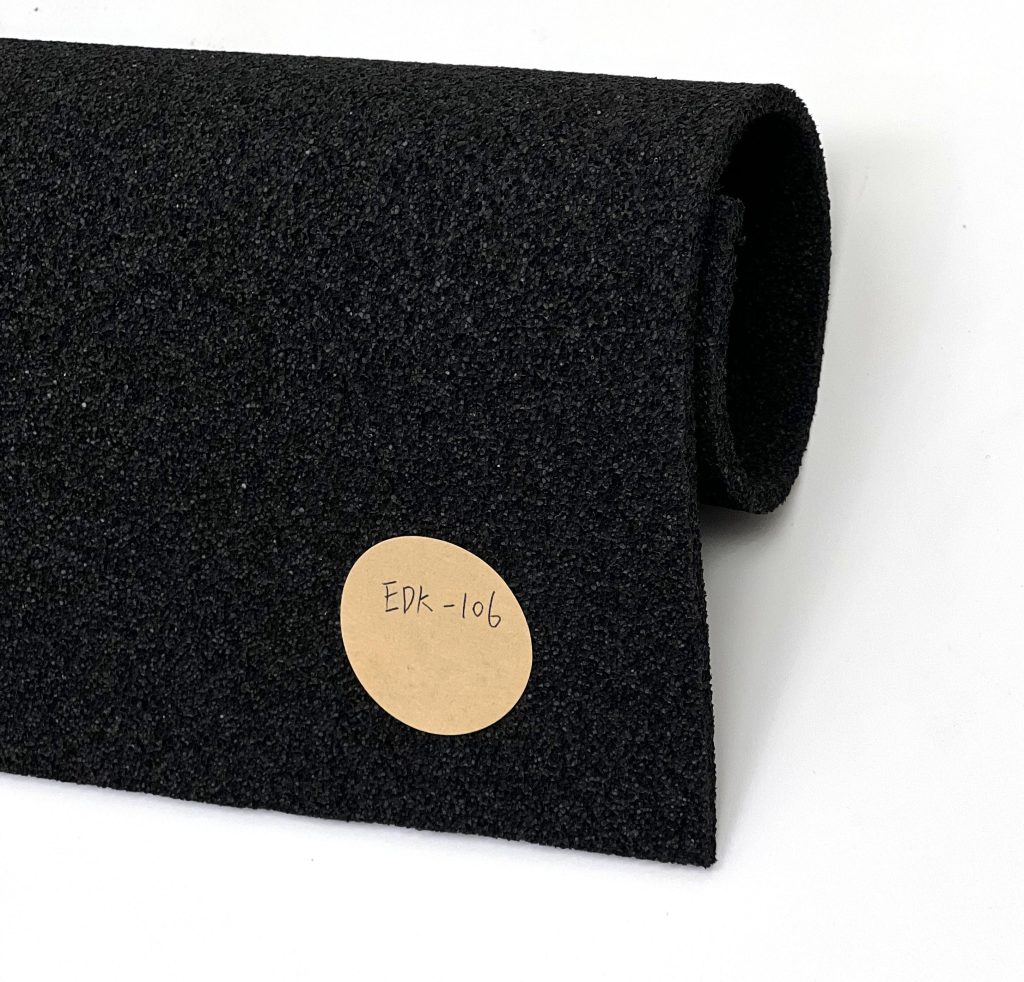

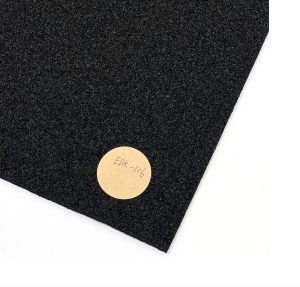

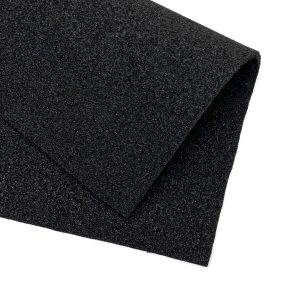

EDK-106 EPDM FOAM
  1. Home
  2. /
  3. Products
  4. /
  5. Foam Rubber
  6. /
  7. Semi Close Cell
  8. /
  9. EDK-106 EPDM FOAM

EDK-106 EPDM FOAM

Use for: Adhesive Tape, Gasket;

Material: EPDM;  Cell State: Open Cell, Semi-closed Cell;

Test Standard: JIS, ASTM

Categories:Open Cell,Semi Close Cell
REQUEST A QUOTE
DOWNLOAD SPECS

Offers superior durability and resistance to weather cold and heat (-40°C to 110°C), and chemicals(acids and alkalis).

Compression load (stress) is slight, so structure is not deformed after foam filling. Flexible material is easy to use when compressed.

Low specific gravity of 0.13; foam pieces do not fuse together.

Please refer to the download center for getting the specific physical performance data for this product item.

01

02

03

DOWNLOAD DA SERIES DATA SHEET (PDF)
01
02
GET A COMPETITIVE QUOTE

IDEAL BERTHING solution

Test

READ ARTICLE
Test
READ ARTICLE

Custom Adhesive-Backed EPDM Foam Solutions

Simplifying Foam Installation Installing foam strips manually can be difficult when the material moves, twists or becomes misaligned during assembly. Adhesive-backed EPDM foam provides temporary or permanent positioning support, depending on the selected adhesive system. The adhesive layer allows the foam to be applied directly to prepared metal, plastic, glass or coated surfaces. Available Configurations […]

READ ARTICLE
Custom Adhesive-Backed EPDM Foam Solutions

Simplifying Foam Installation Installing foam strips manually can be difficult when the material moves, twists or becomes misaligned during assembly. Adhesive-backed EPDM foam provides temporary or permanent positioning support, depending on the selected adhesive system. The adhesive layer allows the foam to be applied directly to prepared metal, plastic, glass or coated surfaces. Available Configurations […]

READ ARTICLE

EPDM Foam Solutions for Construction and Glazing

Flexible Sealing for Building Components Construction joints, glazing systems, windows and doors require sealing materials that can accommodate dimensional tolerances and movement between components. EPDM foam rubber can provide flexible compression around frames, joints and contact surfaces while offering good outdoor weather resistance. Common Construction Applications EPDM foam is suitable for: Window and door frames […]

READ ARTICLE
EPDM Foam Solutions for Construction and Glazing

Flexible Sealing for Building Components Construction joints, glazing systems, windows and doors require sealing materials that can accommodate dimensional tolerances and movement between components. EPDM foam rubber can provide flexible compression around frames, joints and contact surfaces while offering good outdoor weather resistance. Common Construction Applications EPDM foam is suitable for: Window and door frames […]

READ ARTICLE
CONSULT WITH ENGINEER

PRODUCT

  1. Home
  2. /
  3. Products
  4. /
  5. Foam Rubber
  6. /
  7. Semi Close Cell
  8. /
  9. EDK-106 EPDM FOAM

EDK-106 EPDM FOAM

Use for: Adhesive Tape, Gasket;

Material: EPDM;  Cell State: Open Cell, Semi-closed Cell;

Test Standard: JIS, ASTM

INQUIRE NOW

Product Details

Item Details
Product Name EDK-106 Open Cell EPDM Foam
Applicable Industries Automotive, Industrial seal, Household electrical appliances, HVAC, Electronics, Acoustic insulation
Use for Adhesive Tape, Gasket
Material EPDM
Cell State Open Cell
Test Standard JIS, ASTM
Max Thickness More than 50mm + With Skin
Material Advantage EDK-106 is a high-function semi-closed cell EPDM foam with excellent sealing properties. This cell structure combines the flexibility of open cell types with the excellent sealing capabilities of closed cell types (after compression). This unique foam can be laminated with advanced adhesive technology to seal (complex) gaps against water, wind, dust, noise and heat.

specification

Offers superior durability and resistance to weather cold and heat (-40°C to 110°C), and chemicals(acids and alkalis).

Compression load (stress) is slight, so structure is not deformed after foam filling. Flexible material is easy to use when compressed.

Low specific gravity of 0.13; foam pieces do not fuse together.

Please refer to the download center for getting the specific physical performance data for this product item.

Main Applications

> OPEN CELL EPDM /SEMI CLOSED CELL

Foam sealing material with semi-closed cell structure offers flexibility and elasticity as well as weather resistance and  water tightness.

> EDK-106 series are high-function foam sealing materials consisting of EPDM rubber foam with semi-closed cell  structure offering the best durability and weather resistance of all general purpose rubber. Because they are made of flexible material, these products offer superior water-tightness and air tightness.

>The semi-closed cell structure of EDK-106 combines the flexibility of open cell types with the excellent sealing capabilities of closed cell types (after compression). This unique foam can be laminated with adhesive tape to seal (complex) gaps against water, wind, dust, noise and heat.

VERY SIMILAR TO NITTO EPTSEALER E685 SERIES

EDK-106 EPDM FOAM RUBBER

SPECIFICATION

MULTI PURPOSE EPDM

Multipurpose open cell/Semi Closed Cell EPDM

Standard grade

Excellent ageing resistance

Density：130±20 Kg/M³

Roll products will not be available

Max thickness of block products up to more than 50mm with skin

Application specific details:

Sealing of air-conditioner ducts.

For objects/areas requiring superior water tightness.

For instrumental panel and windshield mounting.

For mounting of mirrors and center pillars.

Automotive – sealing of HVAC unit, dashboard, air duct, glass run, fire wall.

Building & Construction – sealing of exterior panel joints, solar panels.

Industrial – sealing of air-conditioners, mobile phones, refrigerators.

SPECIAL POINT

Advantage:

CASIS can provide our customers with a variety of options. Block material with skin, without skin, roll material, adhesive tape, gasket with adhesive tape and so on. EDK-106 has higher density than other open cell foams series for different special fields. The max thickness of original block can reach to 40-45mm thickness without skin.

Basic physical performance:

Cell state: Open cell / Semi closed cell

Tensile strength: ≥ 80 KPa

Density： 130±20 Kg/M³

Temperature range: -40°C to 110°C

Maximum Size: 1000 x 2000 x 40-45mm without skin. (Standard)

Pure EPDM
