Manufactured through advanced vulcanizationprocesses ensuring a solid, void-free core.Manufactured through advanced vulcanizationprocesses ensuring a solid, void-free core.Manufactured through advanced vulcanizationprocesses ensuring a solid, void-free core.Manufactured through advanced vulcanizationprocesses ensuring a solid, void-free core.
| FKM BRAND | ORIGIN | CORE ENGINEERING FOCUS | ACTION |
| Chemours™ Viton™ | United States | Maximum heat resistance (+250°C) and broad-spectrum chemical/fuelcompatibility. | VIEW GRADES |
| Daikin™ DAI-EL™ | Japan | Precision molding, superior low-temperature performance, anddimensional stability. | VIEW GRADES |
Manufactured through advanced vulcanizationprocesses ensuring a solid, void-free core.
The D-shape geometry efficiently dissipates berthingimpacts for heavy vessels.
Formulated rubber compound retains shape even aftercontinuous heavy impact.
The rugged, single-piece molding minimizes the need for spare parts replacements.
Excellent energy absorption ensures vessel kinetic energy is safely dissipated.
COMPETITION AND COOPERATION In various industrial fields, CASIS has some strong competitors. But this should not be a bad thing
COMPETITION AND COOPERATION In various industrial fields, CASIS has some strong competitors. But this should not be a bad thing
COMPETITION AND COOPERATION In various industrial fields, CASIS has some strong competitors. But this should not be a bad thing
OKIN provides a comprehensive engineering package. We customize the accessoriesrequired to match your site specifications.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

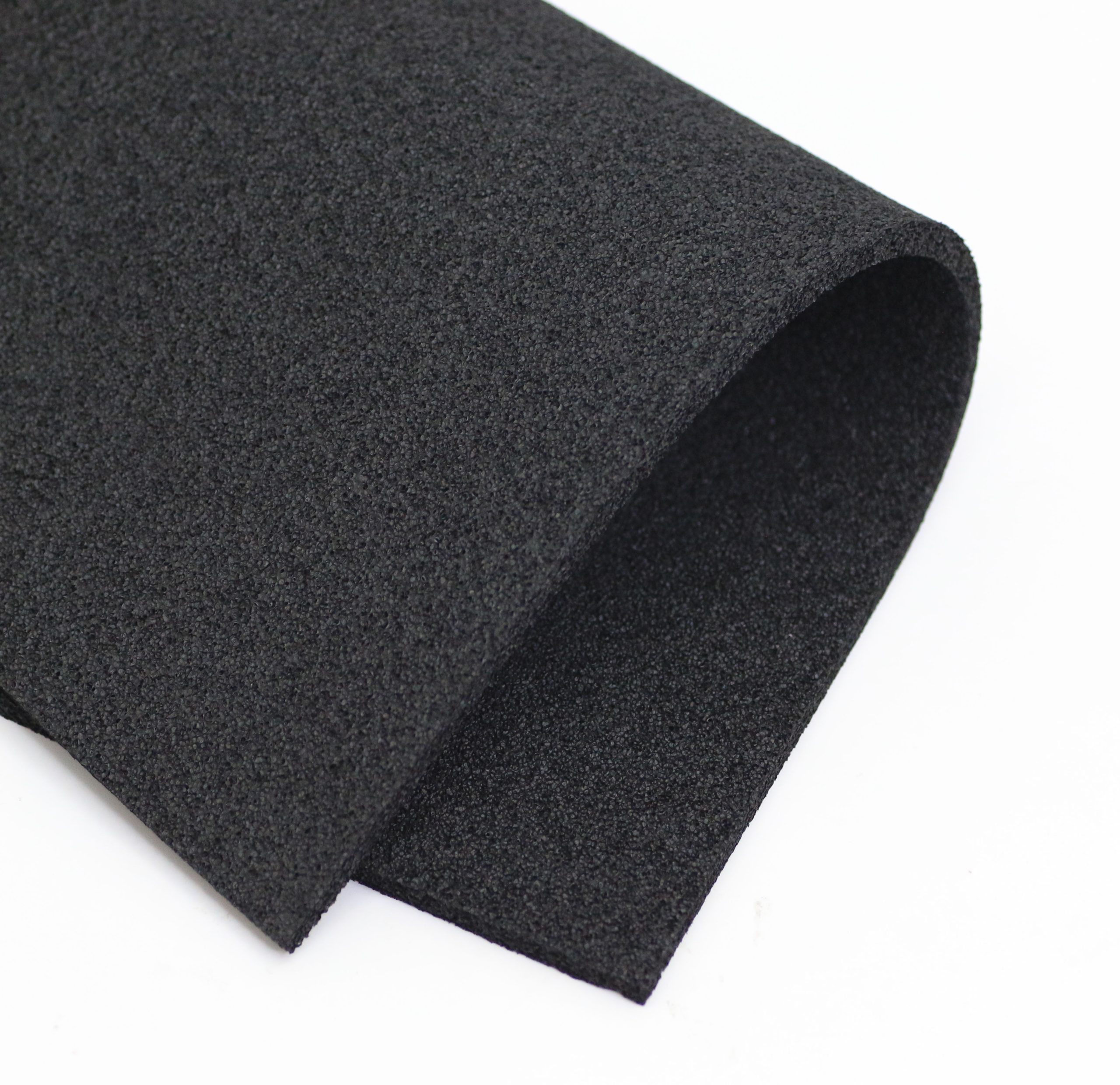

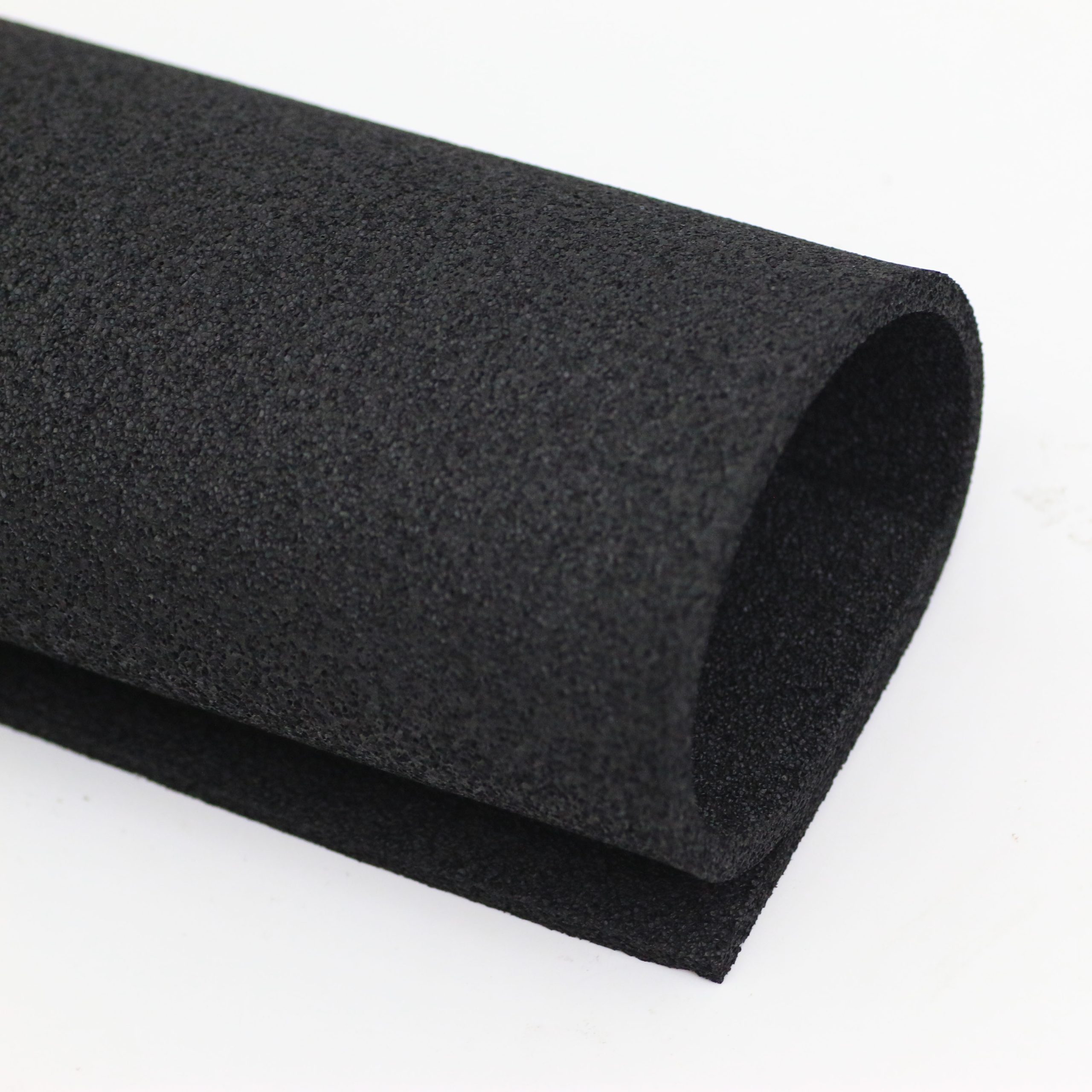

Flame-Retardant EPDM Foam. Use for: Adhesive Tape, GasketMaterial: EPDM. Cell State: Open Cell, Semi-closed Cell.
Test Standard: JIS, ASTM.
| Parameter | Details |
|---|---|
| Product Name | EDK-10F Flame-Retardant Open Cell EPDM Foam |
| Applicable Industries | Automotive, Industrial seal, Domestic appliance, HVAC, Electronics, Acoustic insulation |
| Production Technology | Molded, Extrusion |
| Material | EPDM (HF-1) |
| Cell State | Open Cell |
| Use for | Adhesive Tape, Gasket |
| Test Standard | JIS, ASTM |
| Max Thickness | More than 90mm+ with skin by molding process |
Containing chlorine-free flame retarder and it has obtained UL-94 and HF-1 certification.
Minimal stress facilitates compression; fits snugly to uneven surfaces thereby enabling airtight sealing and soundproofing.
Superior heat, weather, and ozone resistance enables the foam to withstand long-term use.
Please refer to the download center for getting the specific physical performance data for this product item.
> OPEN CELL EPDM /SEMI CLOSED CELL
CASIS ATRIES EDK-10F foam which have obtained UL-94 HF-1 certification are composed of a
flexible foam sealing material consisting of EPDM rubber foam with a semi-closed cell structure
mixed with a flame retarder can be used for waterproofing, air-tightness, soundproofing, or thermal
insulation according to the compression ratio.
> Containing chlorine-free flame retarder, EDK-10F foam has obtained UL-94 and HF-1 certification,
the most stringent standard for flame retardancy of foam. Minimal stress facilitates compression; Fits
snugly to uneven surfaces thereby enabling airtight sealing and soundproofing. Superior heat, weather,
and ozone resistance enables the foam to withstand long-term use.
VERY SIMILAR TO NITTO EPTSEALER EC-100 SERIES

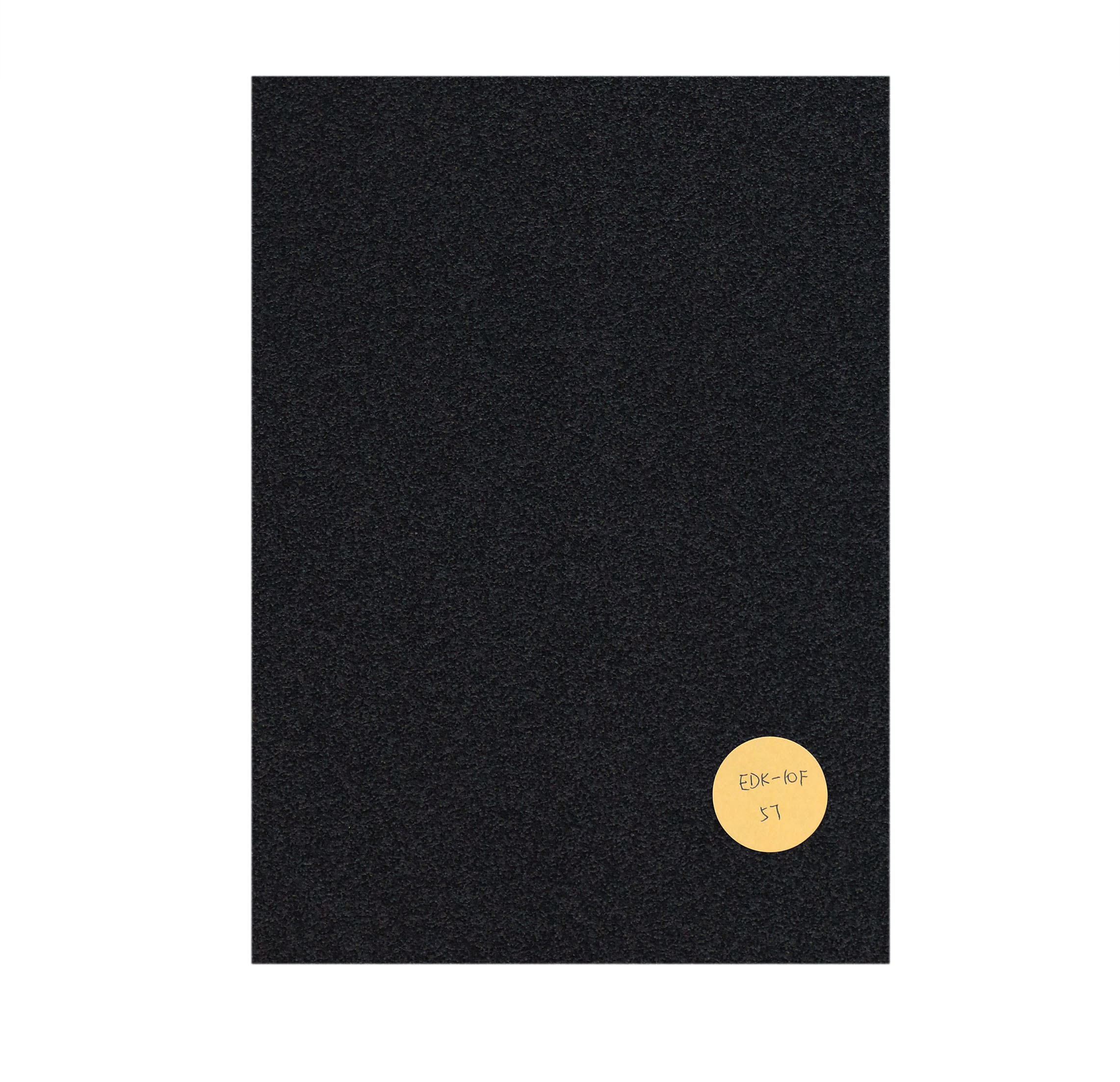

EDK-10F EPDM FOAM
SPECIFICATION
MULTI PURPOSE EPDM
Multipurpose open cell/Semi Closed Cell EPDM
Standard grade
Excellent Flame-retardant
Density：90±20 Kg/M³
Roll products can be provided (10,000mm)
Max thickness of block products up to more than 90mm with skin
Application specific details:
Especially designed for fireproofing, waterproofing, air sealing, soundproofing,Thermal insulation for electric/electronic equipment.
Automobile, electric motors / actuators.
Mobile phones, info processing equipment, household appliances.
Railway, Bus, Subway, Aeroplane, Aircraft, Communal facilities
The biggest difference from EDK-10:
EDK-10F can solve several issues from different flammable environment than EDK-10. It also has the same strong anti-aging performance as EDK-10. Containing chlorine-free flame retarder, EDK-10F foam has obtained UL-94 and HF-1 certification, the most stringent standard for flame retardancy of foam.
Basic physical performance:
Cell state: Open cell / Semi closed cell
Density：90±20 Kg/M³
Temperature range: -40℃ to 150℃
Comply with HF-1 flame retardant standard level
Maximum Size: 1000 x 10000 x 75mm+ without skin. (Standard)
Max thickness of block products up to more than 90mm+ with skin
Pure EPDM
temp
Parameter Details Product Name EDK-10 Open Cell EPDM Foam Applicable Industries Automotive, Industrial seal, Domestic appliance, HVAC, Electronics, Acoustic insulation
Item Details Product Name EDK-106 Open Cell EPDM Foam Applicable Industries Automotive, Industrial seal, Household electrical appliances, HVAC, Electronics, Acoustic
Parameter Details Product Name NKX-55 Open Cell NBR Foam Applicable Industries Acoustic insulation, Domestic appliance, HVAC, Electronics, Automotive, Industrial seal

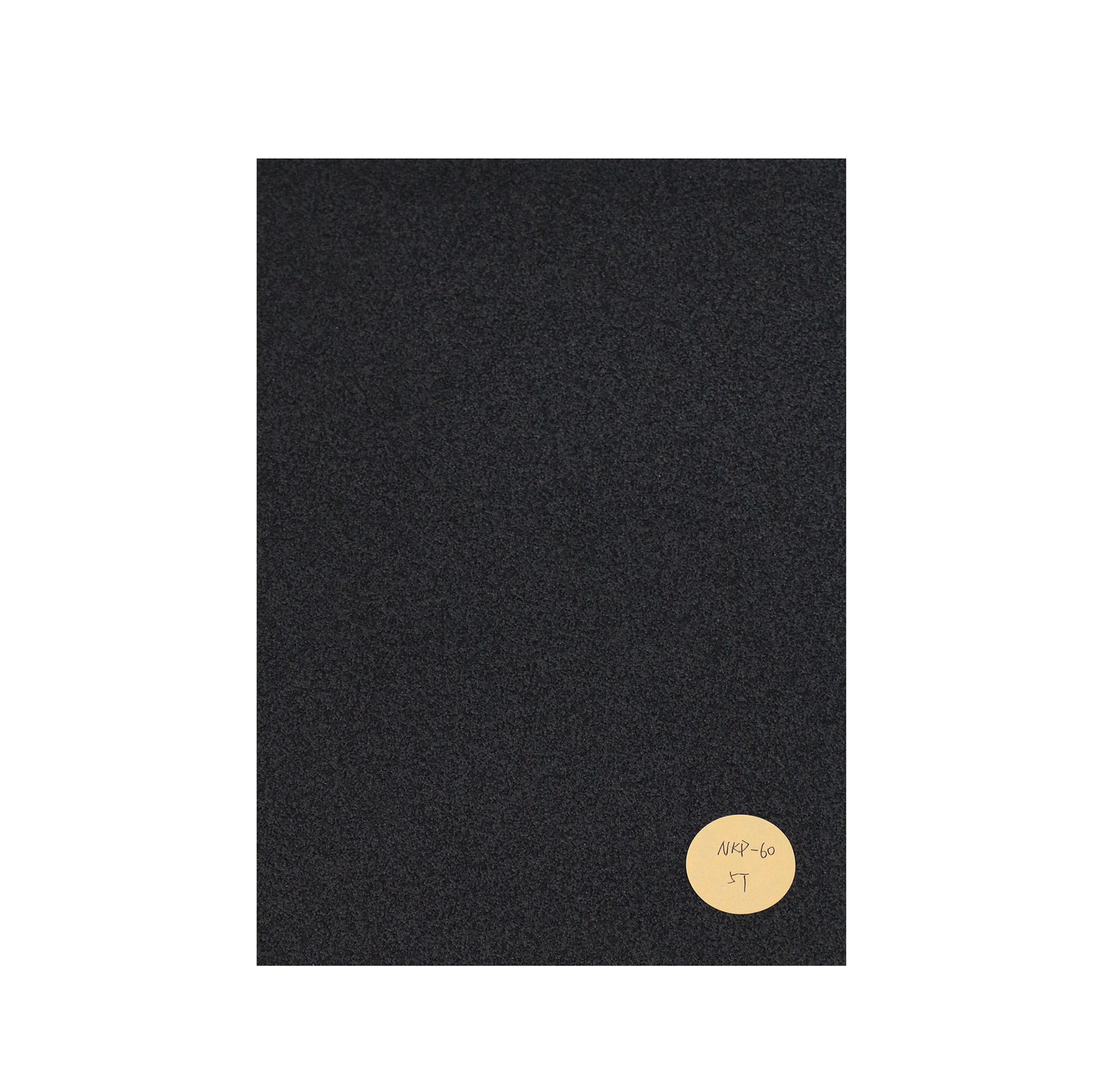

Parameter Details Product Name NKP-60 Open Cell NBR Foam with skin Applicable Industries Acoustic insulation, Domestic appliance, HVAC, Electronics, Automotive,
